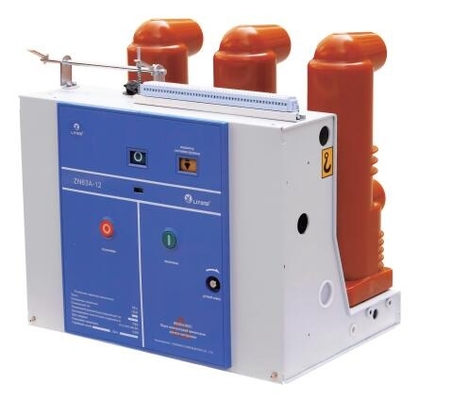

12 KV Vacuum Circuit Breaker Indoor High Voltage Power Distribution Equipment VS1 (ZN63A-12)

1.0 Sets
MOQ
12 KV Vacuum Circuit Breaker Indoor High Voltage Power Distribution Equipment VS1 (ZN63A-12)
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: VS1 (ZN63A-12)
Rated Voltage: 12kV
Product name: Vacuum Circuit Breaker
Rated voltage: 12KV
Rated current: 630A/1250A
rated breaking current: 20KA/25KA/31.5KA/40KA
Certificate: CE, 3C, ISO9001
Type: Vacuum
Poles Number: 3
BCD Curve: C
Rated Frequency: 50/60hz
Información básica
Certificación: CE, 3C, ISO9001
Model Number: VS1 (ZN63A-12)
Pago y Envío Términos
Packaging Details: Standard export package
Supply Ability: 5000 Set/Sets per Month Indoor vacuum circuit breaker
Descripción de producto
technology 1



product display 2



Vs1 Circuit Breaker 12 Kv Vacuum High Voltage Circuit Breaker Indoor Power Distribution Equipment



VS1-12 indoor high voltage vacuum circuit breaker applies to power system of rated voltage 12kv as a protective and control unit for power grid equipment and industrial power equipment. It can equip with KYN28(GZS1), XGN, GG-1A and other types of switchgear panels. Related products: isolated handcart, fuse handcart and voltage transformer handcart.



Ambient condition



Ambient temperature:-10℃-+40℃
Relative humidity:The average humidity of a day should be no more than 95%. The average humidity of a month should be no more than 90%.
Earthquake intensity: not exceed 8 degrees.
The height above sea level:≤1000 m (Except special requirements)
It should be installed in the places without fire, explosion, serious filth, and chemical erosion and violent vibration.



Main technical data

No. Item Unit Data
1 Rated voltage kV 12
2 Rated frequency Hz 50
3 Rated insulation level 1min power frequency withstand voltage KV 42
Rated lightning impulse withstand voltage KV 75
4 Rated current A 630 1000 1250 1600 2000 2500 3150 4000
5 Rated short-circuit breaking current



Rated short-time withstand current (virtual value)

 kA 20 20 20
25 25 25 25
  31.5 31.5 31.5 31.5 31.5
    40 40 40 40 40 40
              50
6 Rated short circuit making current Dynamic stability rated current kA 50 50 50
63 63 63 63
  80 80 80 80 80
    100 100 100 100 100 100
              125
7 Rated short-circuit breaking current breaking time Times



(above 40KA)
8 Rated short-circuit duration S 4
9 Rated operation sequence   O-0. 3s-CO-180s-CO,O-180s-CO-180s-CO(above 40kA)
10 Mechanical life times 30000
11 Rated breaking current of single capacitor bank A 630
12 Rated breaking current of back



to back capacitor bank

 A 400
13 Maximum D.C componen                   5 0 %

 Drawing
