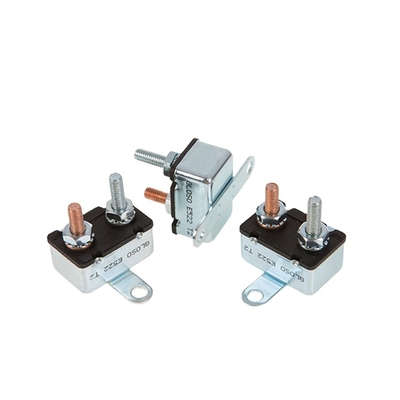

Stud E522 Automotive Type Bimetal Circuit Breakers For RVs 2.5kA @ 12Vdc

300.0 Pieces
MOQ
Stud E522 Automotive Type Bimetal Circuit Breakers For RVs 2.5kA @ 12Vdc
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: E522
Type: Thermal
Poles Number: 1
Rated Voltage: 14vdc
Part No: E522
Mounting: Horizontal (Crosswise)Mounting Bracket
Reset type: T2, Modified Reset
Termination: #10-32 thread
Interrupt Capacity: 2.5kA @ 12Vdc
Regulatory Certificate: SAE J553; SAE J1171; UL1500
Body: Metal Cabinet
RoHS: Y
Información básica
Certificación: SAE J553; SAE J1171; UL1500
Model Number: E522
Pago y Envío Términos
Packaging Details: circuit breaker 1.Sems installed, barries pack 2.300pcs/carton 3: Exported cartons 4: Upon customers' request.
Supply Ability: 100000 Piece/Pieces per Month
Descripción de producto



SONGTANG





Part Number E522
Description E5 Stud Type Circuit Breaker
Used in Battery chargers, trucks, buses, RVs, trolling motors, Electri Vehicles etc
Available in ratings from 5 to 50 Amperes.
Complies with SAE J553; SAE J1171; UL1500
Family Thermal Circuit Breakers
Category E5
Series E522
Voltage 14Vdc
Mounting Horizontal (Crosswise) Mounting Bracket
Reset Type T2, Modified Reset
Operating Temperature -40ºC (-40ºF) to 85ºC (185ºF)
Interrupt Capacity 2,500A @ 14Vdc
Dimension Length: 1.56"
Width: 1.248"
Height: 0.693"
Unit: inch
Weight 26 g
RoHS Y
Standard Pack 300
HS Code 85362000
Termination #10-32 Thread
Body Metal
Storage Temperature -40ºC (-40ºF) to 125ºC (260ºF)



Advantage

Select a low amp or high amp thermal circuit breaker for your commercial

applications, transportation equipment, marine, medical, and other power

supplies:
1.Circuit breaker can do is protect the circuit from a high current short circuit.
2.Through its thermal trip it can protect the circuit from overload conditions.

A circuit breaker will trip if too large a draw or current flow occurs across a

thermal shunt inside.
3.Easy for mounting.
4.Trip-off time is customizing and adjustable according to customers' demands.
5.The design allows the thermal circuit breaker to be extremely cost-effective while

remaining durable and reliable.



Application
Contact us

[FAQ]

>>>Q1: I’m interested in your products, do you have them in stock?
A: We many items in different amps. Please ask our customer service to check our inventory status.

We usually reply within 12 hours.

>>>Q2: If I’m interested in your product, but I’m not sure if I can use it, can I get samples from you?
A: Yes, we do take sample order! We also can help to suggest items or provide our cross references.

>>>Q3: If I order products from you, how soon can I receive them?
A: It depends on which item do you need, if we have it in stock, we can ship it right away.

It usually takes about 3-5 days of delivery.

>>>Q4: What is your lead time?
A: Please ask our customer service, and tell us which items do you need.

For standard MOQ, the production lead time is about 3-4 weeks.

>>>Q5: What is your packaging style?
A: For standard MOQ, we offer carton bulk packaging.

Please let us know if you have special requests.
