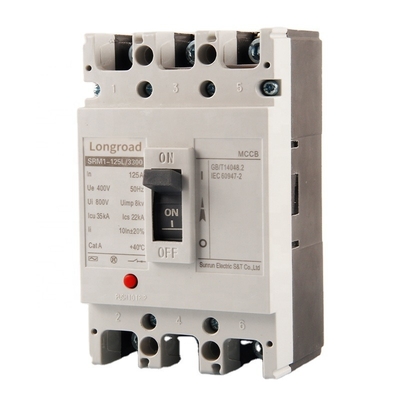

Name: High Quality Electro Magnetic Type 3p 125a Molded Case Circuit Breaker L
Brand: High Quality Electro Magnetic Type 3p 125a Molded Case Circuit Breaker L
SKU: LRM1 3P 125A
Price: 10.07 USD
Availability: InStock
Rating: 4.6 (192 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Model Number: LRM1 3P 125A

Rated Voltage: Other

Product name: 1 2 3 4 Poles Cover Working Principle Of Air Circuit Breaker

Rated current (A) In 40â„ƒ: 63,100,200,225,250, 315,400,500,630,800,1000,1250

Rated insulation voltage (V) Ui: 800

Rated impulse withstand voltage(kV) Uimp: 6,8

Arcing distance (mm): â‰¤50,â‰¤100

Breaking capacity code: L,M,H

OEM,ODM: Yes

Number of poles: 1,2,3,4

Certificate: CE,SAA, ISO9001, CCC

Type: Moulded Case

Poles Number: 3

Información básica

Certificación: CE,SAA, ISO9001, CCC

Model Number: LRM1 3P 125A

Pago y Envío Términos

Packaging Details: 12 units/carton bag

Supply Ability: 150000 Piece/Pieces per Month

Descripción de producto

1.0 SCOPE

1.2 Electric ratings: AC 690V,50/60HZ, 10~1250A;

1.3 Mounting mode: Vertical and horizontal;

1.4 Standard: IEC/EN60947-2.

2.0 TECHNICAL PARAMETERS

Frame size current		63	125	250	400	630	800	1250
Rated current (A) In 40℃		10, 16, 20, 25, 30, 32, 40, 50, 60, 63	25, 30, 32, 40, 50, 60, 63, 75, 80, 100, 125	100, 125, 140, 150, 160, 175, 180, 200, 225, 250	225, 250, 300, 315, 350, 400	400, 450, 500, 630	630, 700, 800	700, 800, 900, 1000, 1250
Rated insulation voltage (V) Ui		800	800	800	800	800	800	800
Rated impulse withstand voltage(kV) Uimp		6	8	8	8	8	8	8
Rated operational voltage (V) Ue AC 50/60Hz		415	415	415	415	415	415	415
Arcing distance (mm)		≤50	≤50	≤50	≤100	≤100	≤100	≤100
Breaking capacity code		L,M,H	L,M,H	L,M,H	L,M,H	L,M,H	L,M,H	L,M,H
Number of poles		1,2,3,4	1,2,3,4	1,2,3,4	3,4	3,4	3,4	3,4
Rated ultimate short-circuit breaking capacity Icu (kA, rms) Test sequence:O-t-CO	AC 220/230/240V	20,42 15, 35	25,42,65,85 20, 25, 50,65	42,65,85 25, 50,65	50,85,100 35,50,70	50,85,100 35,50,70	85,100 60,70	85 65
	AC 380/400/415V	20,42 15, 35	25,42,65,85 20, 25, 50,65	42,65,85 25, 50,65	50,85,100 35,50,70	50,85,100 35,50,70	85,100 60,70	85 65
	AC 660/690V		3, 8, 10	5, 8, 10	10, 12,15	12, 15	20	20
Rated service short-circuit breaking capacity Ics(%Icu) Test sequence:O-t-CO-t-CO		50%	50%	50%	50%	50%	50%	50%
Utilization class		A	A	A	A	A	A	A

Note: The symbols O-t-Co, O-t-Co-t-Co are used for defining the sequence of operations.

O: breaking operation; t: the time interval between two successive short-circuit operations;

CO: a making operation followed, after the appropriate opening time, by a breaking operation.

3.0 Release

Inverse time breaking action property of the over current,releasing of the breaker ( for power distribution) at the status

that all poles are electrified simultaneously

No.	Test current	I/In	Conventional time	Initial status
1	Conventional non-trip current	1.05	2h(In>63A), Ih(In≤63A)	Cold status
2	Conventional trip current	1.30	2h(In>63A), Ih(In≤63A)	Right after test no. 1

Inverse time-delay breaking operation property of the over current tripping of the breaker(for motor protection) at the status that all poles are electrified simultaneously(conforms to IEC60947-3)

No.	Setting current	Conventional time	Start-up status	Remark
1	1.0In	>2h	Cold status
2	1.2In	≤2h	Right after test number 1
3	1.5In	≤4min	Cold status	10≤In≤250
3		≤4min	Cold status	250≤In≤630
4	7.2In	4s≤t≤10s	Cold status	10≤In≤250
4		6s≤t≤20s	Cold status	250≤In≤630

4.0 Product overview

1 MCCB (fixed type)

2.Under-voltage release

3.Shunt release

4.Alarm contact

5.Auxiliary contact

6.Motor-driven operation mechanism

7.Extended manual operation handle

8.Mechanical interlock

9.Cage clamp terminal

10.Terminal cover

11.Front connection plate

Product Display

Related Products

Application

Company Profile

FAQ

Q1: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A1: Yes, We have product catalogue. Please contact us on line or send an Email to sending the cata-logue.
Q2. What advantages do you have?
A2. LONGROAD is a direct Manufacturer in Wenzhou China, we have professional developing, mar-
keting production team to offer you the most competitive price and best service.
Q3. What's your main product?
We have two product project, low voltage electrical.
Q4. Could you print our own logo?
A4. Yes, Our company are available for Retail Wholesale& OEM&ODM.
Q5. How long is the quality guarantee?
A5. 24 month warranty, our products are 100% inspection.
Q6. How long is the deliver time?
A6. It usually takes about 3-5 working days for sample order and 15-30 days for big order.
Q7. What is your payment terms?
A7. Our Payment term is T/T, Aliexpress, Western Union, U/C at sight.
Q8. Any certification of your company or product?
A8. We have ISo 9001. CE. CB sEMKO. SAA TUV. ccc.
